FMS 1:10 Canyon RS
Introduction

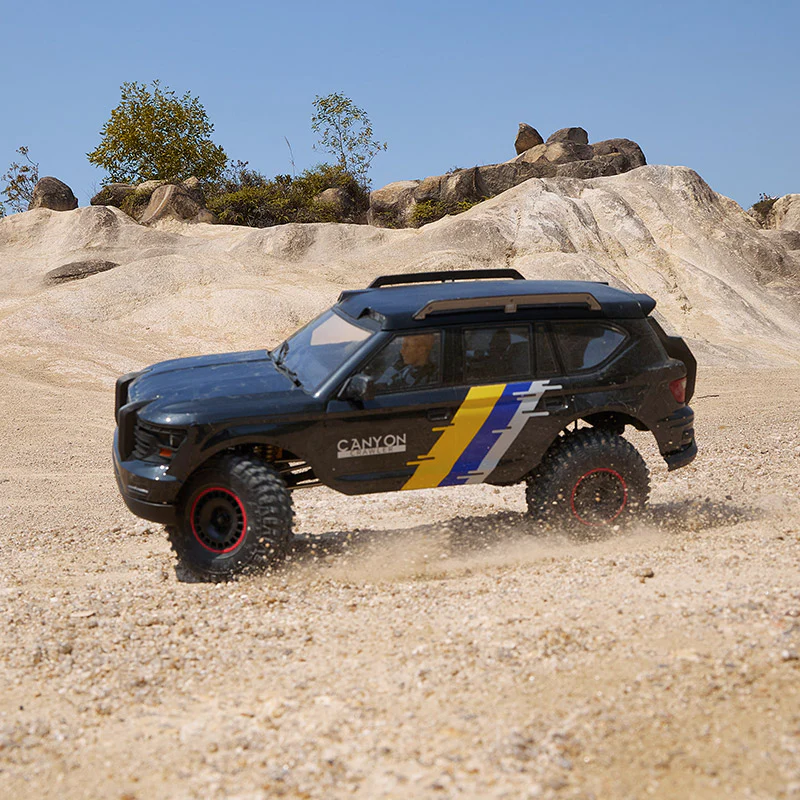

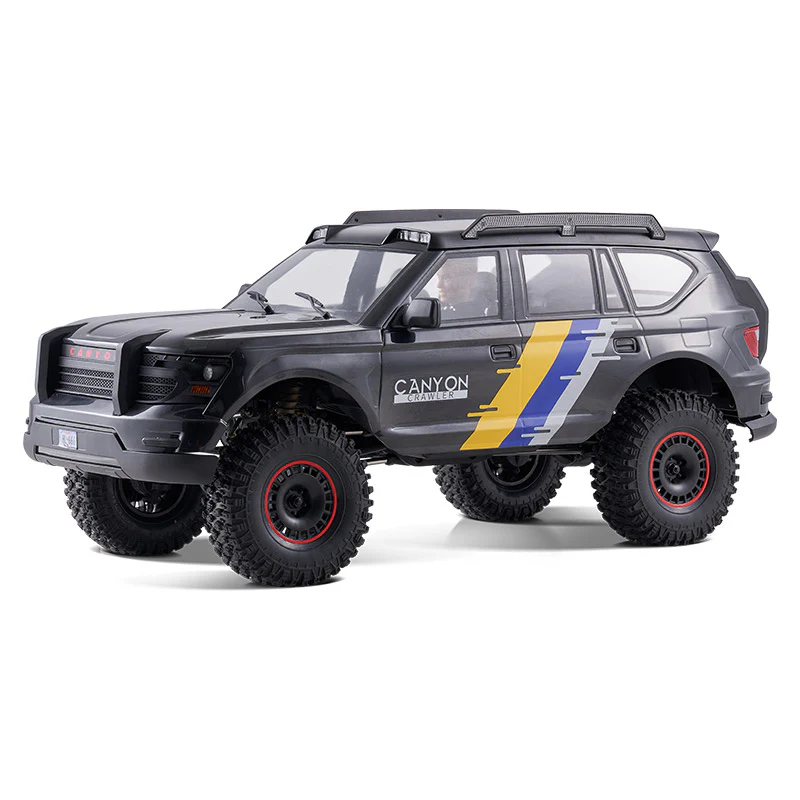

The FMS CANYON is a rugged off-road machine inspired by Dubai’s futuristic police supercar. Designed for realism and built for performance, it features a high-strength PC body shell with durable nylon roof panels, bumpers, mirrors, and door handles. Clear windows reveal a detailed driver figure and a fully replicated cockpit interior. A synchronized LED lighting system includes functional headlights, turn signals, and tail lights with customizable light buckets for scale accuracy. The body attaches using FMS’s patented magnetic quick-mount system, which automatically connects power and lighting functions for easy setup. Underneath, the reinforced nylon chassis offers outstanding rigidity and impact resistance. Power comes from a two-speed transmission with reverse, metal gears and bearings, and portal axles that deliver maximum ground clearance. Finishing touches include servo-saver protection, rear brake discs and functional DIG mode for ultra-tight, tank-style turns.
What’s in the Box:
- 1 x FMS 1:10 Canyon RS
- 1 x 2.4GHz MG11 Transmitter
- 1 x FS-R11P-BS Receiver (installed)
- 1 x 550 Brushed Motor 32T (installed)
- 1 x Product Manual
Needed to Complete:
- 4 x AA Batteries for Transmitter
- Battery & Charger for Kit (Recommended 2S or 3S 5000mAh XT60 plug x1)
Note to Buyer:
- This product is recommended for ages 14 and up. Children under 14 should use it only under adult supervision.
Specification:
| Transmitter | MG11 |
| Receiver | FS-R11P-BS |
| Light Control | DB01 |
| Recommend Battery | 2-3S |
| Motor Type | 550 Brushed Motor 32T |
| Motor Gear Pinion | 14T |
| Motor Gear Pitch | M0.6 |
| Spur Gear Pinion | 33T |
| Spur Gear Pitch | M0.6 |
| ESC | Hobbywing 1060 |
| Steering Servo | 25KG Steering Servo*1 |
| Shift/Differential Servo | High/low speed servo*1, Front/Rear Diff Servo*2, DIG servo*1 |
| Product Size | 580*260*256mm |
| Wheelbase | 325mm |
| Tread | 208mm |
| Approach Angle | 38° |
| Departure Angle | 39.5° |
| Breakover Angle | 45° |
| Ground Clearance | 60mm |
| Steering Type | 2WS |
| Maximum Steering Angle | 42° |
| Maximum Climbing Angle | 40° |
| Tire Size (Diameter & Width) | 116*42mm |
| Wheelhub Size (Diameter & Width) | 56*32mm |
| Wheelhub Adaptor Size | 12mm |
| Bearing | 36pcs |
| Drive System | 4WD |
| Waterproof Class | Splash-proof |
| Battery Compartment Size | 156*48mm |
| Maximum Speed | 15KM/h |
| Maximum Control Distance | 150m |
